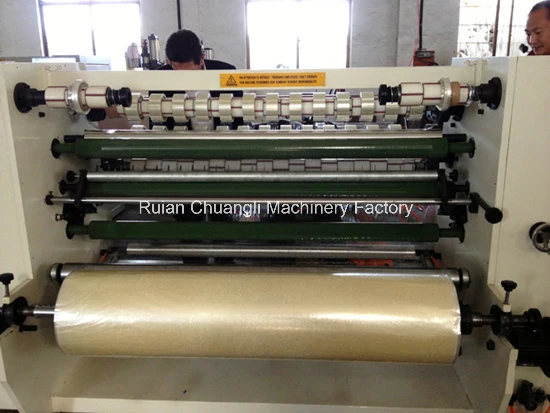

BOPP/OPP Adhesive Tape/Gummed Tape/Scotch Tape/Cellulose Tape Slitting and Rewinding Machine is used to slit the BOPP packing adhesive tapes for the carton box etc.
- Centralized control panel:All operation controls. For this machine are centralized in a control panel.
- Three-step length setting:This length setting provides extremely smooth rewinding operation to gives accurate rewinding length.
- Automatic shaft change:Once the rewinding operation is accomplished,the machine will automatically perform shaft changes for convenient and wfficient operations.
- Labeling indication:This plate is attached with a reference line for labeling instruction
Main technical parameters:
Valid width: 1300 mm
Max. diameter of materials: 600 mm
Slitting width: 12-1280 mm
Inside diameter of paper core: 76.2 mm
Diameter of rewinding (4 Shafts rewind): 76.2-150 mm
Diameter of rewinding (2 Shafts rewind): 76.2-300 mm
Blade: 0.2 x 22 x 60 mm
Machine speed: 0-180 M/min
Main motor: 5 HP
