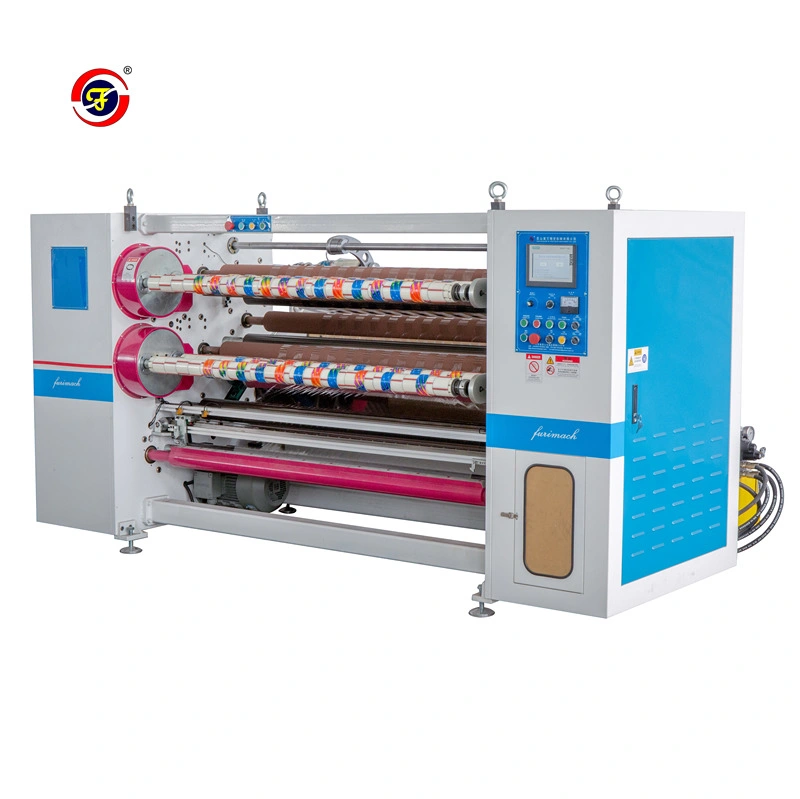

FR-210BS super clear tape making machine
Application
Suitable for slitting BOPP adhesive tape, cellophane tape, etc.
Feature
1. Full-automatic four-shaft exchange is adopted and the efficiency is improved.
2. PLC control system with touch panel operation.
3. The unwinding tension is adopted with pneumatic braking control. The rewinding tension is adopted with the dual control equipped with the clutch and the independent slide setting for free adjustment of the tensile force.
4. The curved stretch roller is designed to eliminate tape wrinkling during extension and feeding.
5. Pneumatic brake brings the machine to an immediate halt for accurate positioning and labeling.
6. (Optional) Auto labeling and slitting stationery tape functions.
Main Technical Parameters
YouTube Link :https://furimach.en.made-in-china.com
Application
Suitable for slitting BOPP adhesive tape, cellophane tape, etc.
Feature
1. Full-automatic four-shaft exchange is adopted and the efficiency is improved.
2. PLC control system with touch panel operation.
3. The unwinding tension is adopted with pneumatic braking control. The rewinding tension is adopted with the dual control equipped with the clutch and the independent slide setting for free adjustment of the tensile force.
4. The curved stretch roller is designed to eliminate tape wrinkling during extension and feeding.
5. Pneumatic brake brings the machine to an immediate halt for accurate positioning and labeling.
6. (Optional) Auto labeling and slitting stationery tape functions.
Main Technical Parameters
| Model | FR210BS-1300 | FR210BS-1600 |
| Effective width | 1330 mm | 1630 mm |
| Max. Unwind diameter | 800mm | 800mm |
| Min. Slitting width | 10mm | 10mm |
| Max. Rewind diameter(shaft3") exchange 4 shafts | 150mm | 150mm |
| Machine speed | 180m/min | 180/min |
