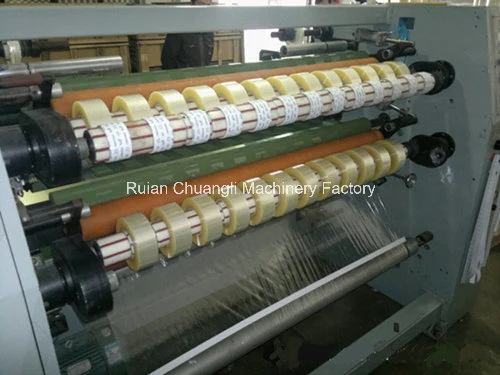

OPP tape/adhesive tape/scotch tape slitting machine and rewinding machine

OPP Adhesive Tape/Gummed Tape/Scotch Tape Slitter and Rewinder is used to slit the BOPP packing adhesive tapes for the carton box etc.Centralized control panel:All operation controls. For this machine are centralized in a control panel.Three-step length setting:This length setting provides extremely smooth rewinding operation to

Featured Products

OPP Adhesive Tape/Gummed Tape/Scotch Tape Slitter and Rewinder is used to slit the BOPP packing adhesive tapes for the carton box etc.

  1. Centralized control panel:All operation controls. For this machine are centralized in a control panel.
  2. Three-step length setting:This length setting provides extremely smooth rewinding operation to gives accurate rewinding length.
  3. Automatic shaft change:Once the rewinding operation is accomplished,the machine will automatically perform shaft changes for convenient and wfficient operations.
  4. Labeling indication:This plate is attached with a reference line for labeling instruction


Main technical parameters:
Model: SG-1300
Valid width: 1300 mm
Max. diameter of materials: 600 mm
Slitting width: 12-1280 mm
Inside diameter of paper core: 76.2 mm
Diameter of rewinding (4 Shafts rewind): 76.2-150 mm
Diameter of rewinding (2 Shafts rewind): 76.2-300 mm
Blade: 0.2 x 22 x 60 mm
Machine speed: 0-180 M/min
Main motor: 5 HP
Weight: 2000kg
Dimension: 2560*1350*1500mm


OPP Adhesive Tape/Gummed Tape/Scotch Tape Slitter and Rewinder
OPP Adhesive Tape/Gummed Tape/Scotch Tape Slitter and Rewinder
OPP Adhesive Tape/Gummed Tape/Scotch Tape Slitter and Rewinder
